Creating Separate Filled Regions for Each Room with Unique Fill Patterns and Colors in Revit Using AI with BIMLOGIQ Copilot

Written by

BIMLOGIQ

Published

Jan 13, 2025

In architectural design, generating filled regions for rooms in Revit improves clarity and supports better coordination. Manually assigning unique fill patterns and colors to each room can be tedious and error-prone, especially in larger projects.

With BIMLOGIQ Copilot’s AI, this task can be automated. In this example, the user entered the following prompt:

Prompt 1:

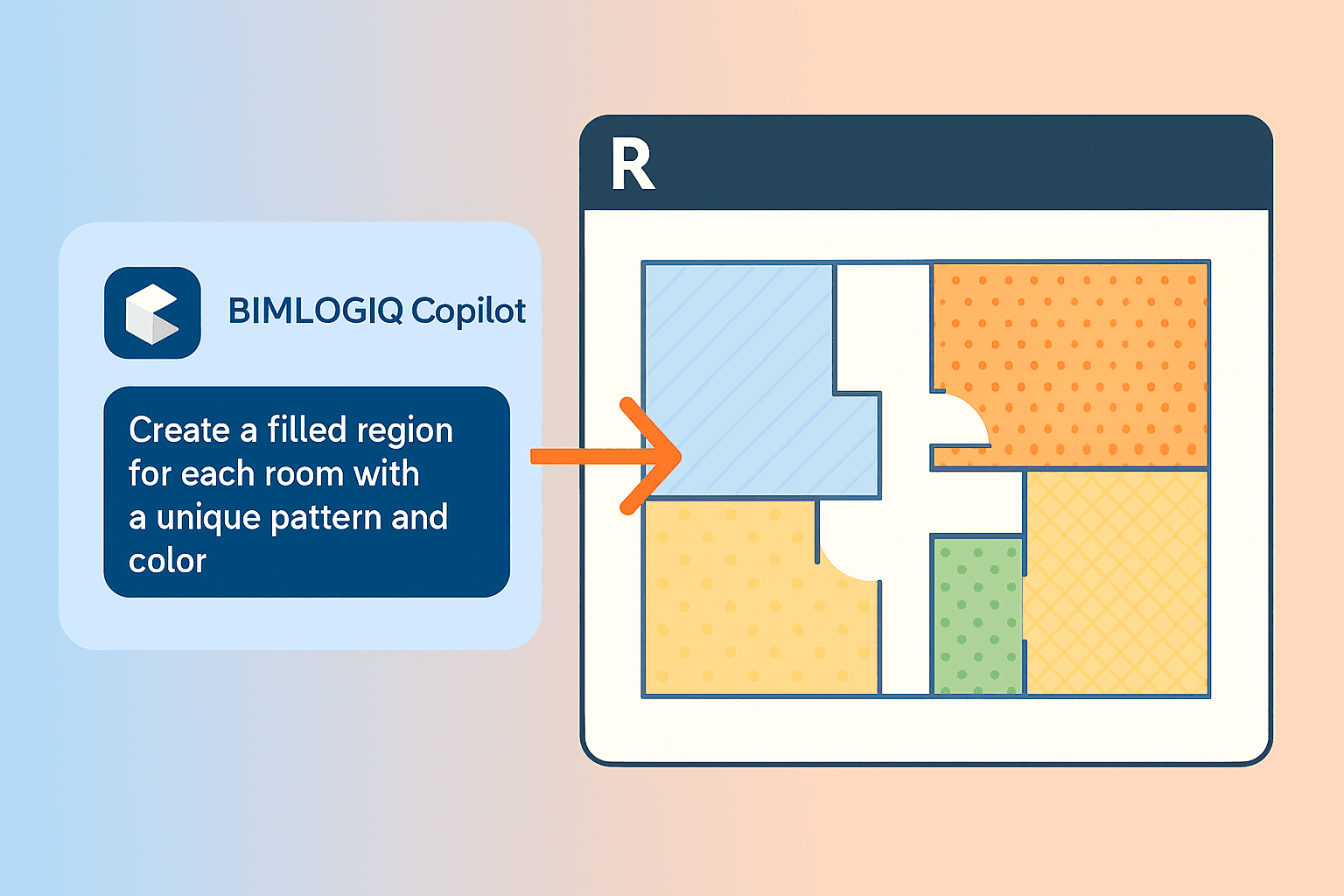

Create a separate filled region for each room in this view, assigning a unique fill pattern and color based on its name.

The AI identifies all rooms in the selected view, creates individual filled regions, and applies a distinct pattern and color to each one based on the room name. This results in visually differentiated spaces that are easier to identify and review across documentation and presentations.
